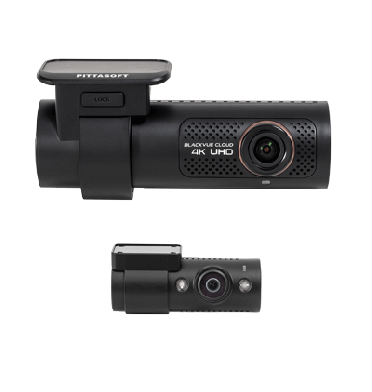

Blackvue | DR970X-2CH IR
- Memory card included(Can be upgraded upto 256GB).
- Blackvue | DR970X 2-CH (Both Hardwire and Plug & play).
- Built-in GPS
- Front 4K Ultra HD 1080p @30fps , Interior Full HD 1080p @30fps Camera.
- Viewing Angle : Front Diagonal 155°, Interior Diagonal 180°.
- Built-in wifi.
- 8-Megapixel CMOS Sensor
- The best protection for you and your vehicle.
- 4K/Full HD Cloud Taxi Dashcam.
- Seamless Pairing with the BlackVue App.
- Wi-Fi, GPS and Optional LTE.
- Native Parking Mode.
- Ultrawide Infrared Interior Camera.
- Set up (easily) and forget.
- Built-in Speaker, Impact Sensor and Motion Detection.
- Sleek Interface.
- Blackvue | DR970X 2-CH Recording Time PDF.
- BlackVue App (iOS, Android) and Viewer- (Windows/Mac/Web).
- BlackVue Cloud.
- LTE Connectivity Module (Optional).
- Your videos are safe.
- Tamper-Proof Case (Optional).
- Intelligent Parking Mode).
- Please note when purchasing a 2/3 channel combination dashcam for automobiles. Certain vehicles have complex tailgate applications from split tailgates to complex grommet arrangements, before a purchase is executed please either call us on 01274 733633 or email on info@vehicletrackingtech.co.uk beforehand so we can ascertain the information to hand.
- Please before purchasing a 2channel/multichannel dashcam combination for vans. Certain vans that are carpeted cannot have the rear dashcams installed. If any further assistance is required, please call on 01274 733633 or email on info@vehicletrackingtech.co.uk
NOTE : Regarding the Supplied & Fitted Options
(Supplied, inc VAT)
What's in the box
- Front Camera
- Interior IR Camera
- Quick start guide
- Cable clips (8EA)
- microSD card
- microSD card reader
- Spare mount sticky pads
- Coaxial Cable (6m)
- Hardwiring power cable
- Cigarette lighter power adapter
- Pry tool
Specifications
- Viewing Angle :
- Front: Diagonal 155°, Horizontal 130°, Vertical 70°
- Interior: Diagonal 180°, Horizonal 150°, Vertical 93°
- Resolution Frame Rate :
- Front: 4K (3840 x 2160) @ 30 fps
- Rear: Full HD (1920×1080) @ 30 fps
* Frame rate may vary during Wi-Fi streaming.
- Wi-Fi : Built-in (802.11n (2.4~2.4835 GHz))
- Cloud Compatible : YES
- GPS : Built-in (Dual Band : GPS, GLONASS)
- Rear Camera Connection : Coaxial cable
- Memory Support : microSD card up to 256GB
- Recording Modes :
- Normal recording, Event recording (when impact is detected in normal and parking mode)
- Manual recording and Parking recording (when motion is detected).
* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
- Imaging Sensor :
- Front: 8-Megapixel CMOS sensor
- Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
- Parking Mode : YES (hardwiring cable included)
- Parking Mode Event Voice Notifications : YES
- Video Codec : H.264 (AVC)
- Image Quality and Bitrate Front/Rear :
- Highest (Extreme): 25+10 Mbps
- Highest: 12+10 Mbps
- High: 10+8 Mbps
- Normal: 8+6 Mbps
- Format Free : YES (Adaptive)
- Event File Overwrite Protection : YES (up to 50)
- SD Card Failure Alert : YES
- Scheduled Reboot : YES
- Video File Extension : MP4
- Microphone : Built-in
- Speaker : Built-in
- Impact Sensor : 3-Axis Acceleration Sensor
- LED Indicators:
- Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED
- Rear: Rear Security LED
- Button : Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.
- Operation Temperature : -20℃ – 70℃ (-4°F – 158°F)
- Storage Temperature : -20 °C − 70 °C (-4 °F − 158 °F)
- High Temp Cut Off : Approx. 70 °C (167 °F)
- Backup Battery : Built-in supercapacitor
- Input Power : DC 12V-24V (3 pole DC Plug (Ø3.5d x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
- Power Consumption Hour :
- Normal Mode (GPS On/Cloud On) : Avg. 530mA/12V
- Normal Mode (GPS On/Cloud Off) : Avg. 470mA/12V
- Parking Mode (GPS Off/Cloud On) : Avg. 400mA/12V
- Parking Mode (GPS Off/Cloud Off) : Avg. 340mA/12V
- * Actual power consumption may vary depending on use conditions and environment.
* Model DR970X-2CH LTE should be used only in circuits that satisfy Limited Power Source.
(Maximum power consumption is to be less than 100 VA or 8 A).
- Others : Built-in 4G LTE module compatible with Nano-SIM. Frequency Bands: B1,B3,B7,B20
- Bliuetooth : Built-in (V2.1+EDR/4.2)
- LTE : External (Optional)
While installing our dashcams is relatively straightforward, every vehicle is unique, and challenges may arise, especially with rear camera installations.
We recommend professional installation to ensure proper setup, particularly for vehicles with complex configurations like split tailgates or DAB interference. Our expert team is equipped to assess and address such challenges, offering tailored solutions for your specific vehicle requirements.
A dashcam, mounted discreetly on your vehicle's dashboard or windshield, serves as your silent witness on the road, capturing video footage of your journeys.
Installing one not only enhances safety but also provides invaluable accident documentation and peace of mind while driving. Moreover, our range includes additional cameras for internal, rear, and side views, suitable for various vehicle types, from cars to vans.
