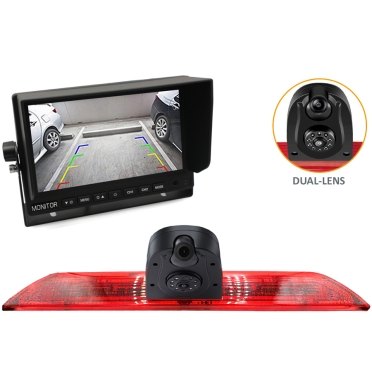

InCarTec | Ford Transit (2012 Onwards) DUAL LENS high level brake light camera and monitor kit ( CK-FOR-01-DUAL )

Dual Lens reverse view high level brake light camera and video monitor kit specially designed for Ford Transit (2012 Onwards) vehicle models.

The camera included in this kit replaces the high level brake light at the rear of the vehicle and provides additional visual safety to the back of the vehicle, whilst maintaining its original appearance.

The dual-camera feature allows the driver to view the rear of the vehicle in real time as well as providing a camera feed to make reversing a more comfortable and stress-free experience.

This kit comes complete with a 7 inch 2-channel video monitor, great to use when installing an aftermarket reverse camera(s) without having to affect the original factory fitted system.

DUAL LENS High level brake light camera (CVC-FOR-01-DUAL)

Dual-Lens rear view camera specially designed for Ford Transit (2014-2019) and Ford Transit Custom (2012 Onwards) vehicles.

This camera replaces the high level brake light at the rear of the vehicle and provides additional visual safety to the back of the vehicle, whilst still maintaining its original appearance.

The dual-camera feature allows the driver to view the rear of the vehicle in real time as well as providing a camera feed to make reversing a more comfortable and stress-free experience.

This dual-lens camera features a 170 degree lens viewing angle, 1/3" CMOS image sensor, 756 x 504 resolution and is waterproof rated at IP68 as standard.

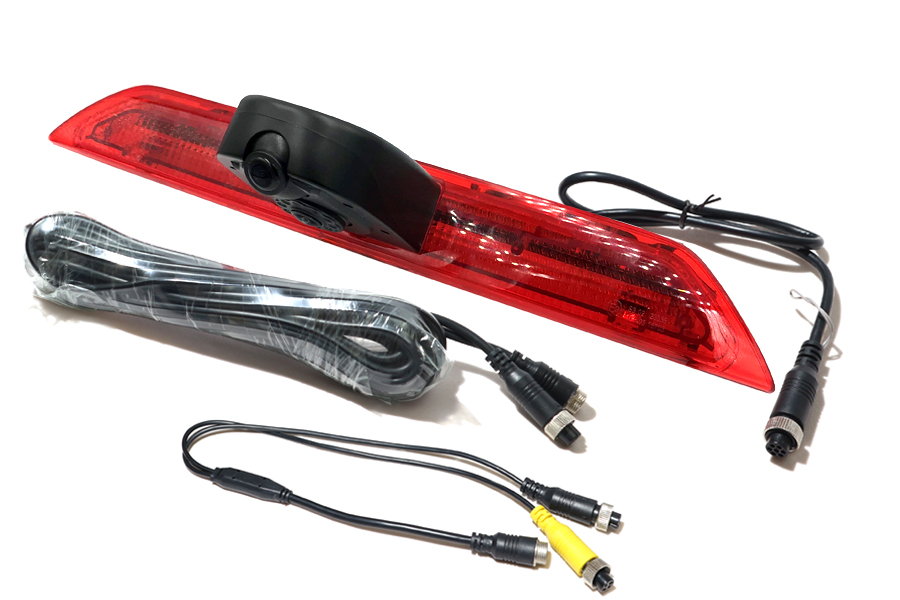

This camera kit includes a 10m 7-pin extension cable and 4-pin to 7-pin cable splitter.

PLEASE NOTE: Whilst we do our best to make sure our product compatibility listings are as accurate as possible, there may still be exceptions. Different vehicle shapes may require different cameras. Please check that the image of the camera matches the existing brake light on the vehicle.

Camera Specifications

• Image Sensors: 1/3" color HD CMOS/CCD
• System: NTSC/PAL (TV system)
• Minimum Illumination: 0Lux (LED ON)
• Night Vision: 8 pcs IR LED (30ft range)
• Lens Angle: 170°
• BLC: Auto
• White Balance: Auto
• Video Color: Colorful
• Waterproof Class: IP68
• Effective Pixels: 756(H) x 504(V)
• Pixel Resolution: 600TV lines
• Video Output: 1.0Vp-p, 75Ω
• Electronic Shutter: 1/60(NTSC) - 1/10000s
• S/N Ratio: Better than 48dB
• Operating Temperature: -20°C to +70°C RH95%
• Storage Temperature: -40°C to +100°C RH95%
• Working Power (DC): 12V / 1.5A
• Current Consumption: 90mA Max
• Video Cable: RCA connector / 4PIN aviation

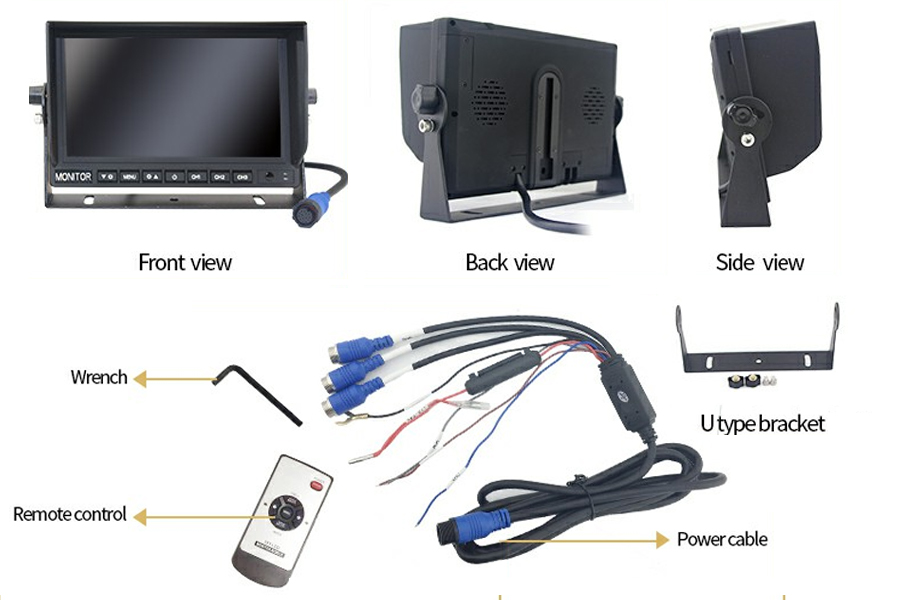

7 inch Rear View Camera Monitor/Screen (CVC-M-709)

7 inch Rear View Camera Monitor/Screen (4 PIN Connection)
These monitors are great to use when installing an aftermarket reverse camera(s) without having to affect the original factory fitted system.
U Bracket included. You can change the bracket to either CVC-M-BR01 or CVC-M-BR05 ball joint swivel brackets.

Monitor Specifications

• Screen Size: 7 inch
• Resolution: 800 x 480
• Screen Luminance: 450CD
• Contrast Ratio: 500:1
• Viewing Angle Range: U:50° / D:60° / L/R: 70°
• Video/Audio Input: 3 CH video (2 x aviation plug video/audio, 1 x RCA input)
• Video Format: CVBS / PAL / AUTO NTSC
• Working Voltage: DC 10.8 – 36V
• Bracket: U shaped bracket
• Wire Plug: 2 x RCA Plug
• OSD Menu Features:
• Switch parking guide lines
• Mirror / Non-mirror image view switch
• Reverse time delay (0–10 seconds)
• Language options
• Adjust video effects
• Adjust volume

Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.

Ford - Transit MK8 (2013-2018)
Ford - Transit MK8 Facelift (2018 >)
