InCarTec | Ford Transit (2014-2019) DUAL LENS High Level brake light rear view camera (NTSC) ( CVC-FOR-01-DUAL )
ALSO COMPATIABLE WITH VEHICLES BELOW:
Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.
Ford - Transit MK8 (2013-2018)
Ford - Transit MK8 Facelift (2018 >)
PLEASE NOTE: If connecting to a standard Video input (RCA/PHONO) connector an additional 2x CVC-CB-09 converter cables will be required.
PLEASE NOTE: Whilst we do our best to make sure our product compatibility listings are as accurate as possible, there may still be exceptions. Different vehicle shapes and specs may require different cameras. Please check that the image of the camera matches the vehicle it is to be fitted to.
(Supplied, inc VAT)
Full Description
Dual-Lens rear view camera specially designed for Ford Transit (2014–2019) and Ford Transit Custom (2012 Onwards) vehicles.
This camera replaces the high level brake light at the rear of the vehicle and provides additional visual safety to the back of the vehicle, whilst still maintaining its original appearance.
The dual-camera feature allows the driver to view the rear of the vehicle in real time as well as providing a camera feed to make reversing a more comfortable and stress-free experience.
This dual-lens camera features a 170° lens viewing angle, 1/3" CMOS image sensor, 756 x 504 resolution and is waterproof rated at IP68 as standard.

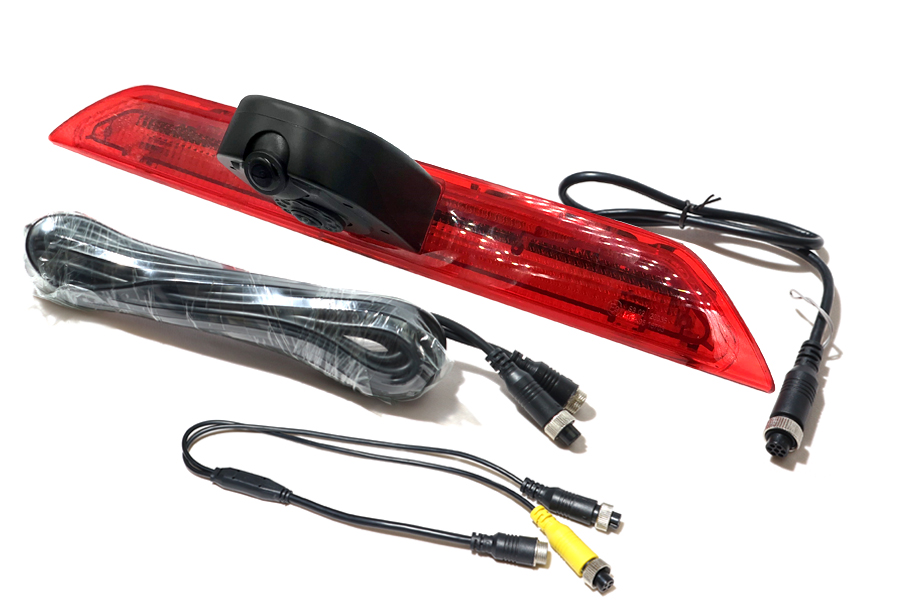

This camera kit includes a 10m 7-pin extension cable and 4-pin to 7-pin cable splitter.
PLEASE NOTE: If connecting to a standard Video input (RCA/PHONO) connector an additional 2x CVC-CB-09 converter cables will be required.
- Image sensors: 1/3 color HD CMOS/CCD
- System: NTSC/PAL (TV system)
- Min illumination: 0Lux (LED ON)
- Perfect IR night vision, 8 pcs IR LED
- Lens Angle: 170°
- Night Vision distance: 30ft
- Minimum illumination: <0.5 BLC: Auto
- White Balance: Auto, Video Color: Colorful
- Waterproof Class: IP68
- Effective Pixels: 756(H) × 504(V)
- Pixel Resolution: 600TV lines
- Video Output: 1.0Vp-p, 75Ω
- Electronic Shutter: 1/60(NTSC) – 1/10000S
- S/N ratio: Better Than 48dB
- Operation Temperature: -20°C to +70°C RH95%
- Storage Temperature: -40°C to +100°C RH95%
- Working Power (DC): 12V / 1.5A
- Watt Current consumption: 90mA Max
- Video cable is RCA connector / 4Pin aviation
