Dual Lens Reverse View Brake Light Camera & Monitor Kit for Ford Transit Custom (2016 Onwards)

Dual Lens reverse view high level brake light camera and video monitor kit specially designed for Ford Transit Custom (2016 Onwards) vehicle models.

The camera included in this kit replaces the high level brake light at the rear of the vehicle and provides additional visual safety to the back of the vehicle, whilst maintaining its original appearance.

The dual-camera feature allows the driver to view the rear of the vehicle in real time as well as providing a camera feed to make reversing a more comfortable and stress-free experience.

This kit comes complete with a 7 inch 2-channel video monitor, great to use when installing an aftermarket reverse camera(s) without having to affect the original factory fitted system.

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing high level brake light on the vehicle.
For 2013–2015 models with standard bulbs use CVC-FOR-02AL LENS High Level Brake Light Camera (CVC-FOR-03-DUAL).

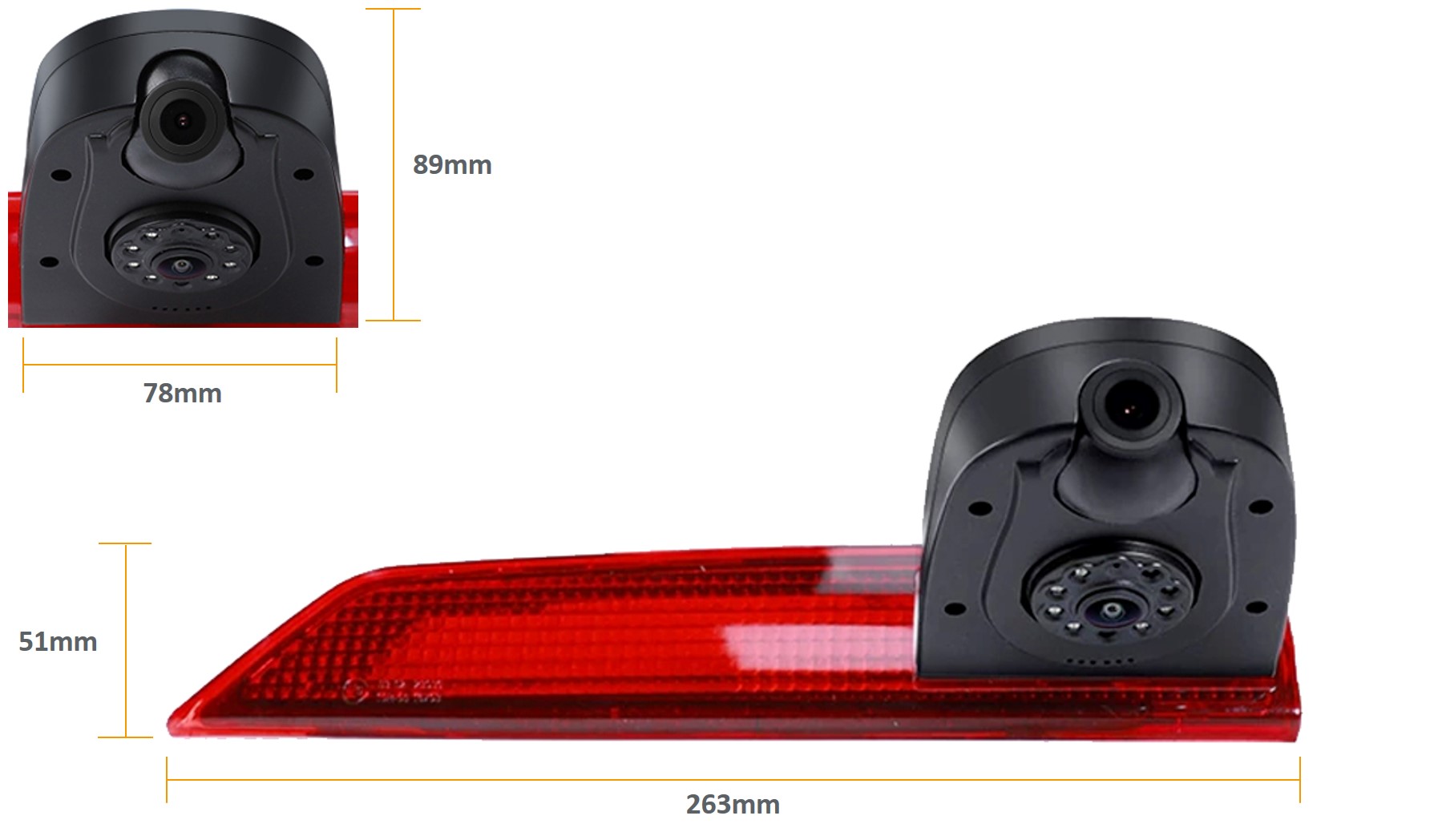

DUAL LENS High Level Brake Light Camera (CVC-FOR-03-DUAL)
• 2 x video camera feeds using 2 x 4 pin aviation connectors
• You will need to use a Monitor with 2 x 4pin male pins aviation connectors. Or use item CVC-CB-09 cable to convert to RCA phono connectors

This dual-lens camera features a 170 degree lens viewing angle, 1/3" CMOS image sensor, 756 x 504 resolution and is waterproof rated at IP68 as standard.

This camera kit includes:
• 10m 7-pin male to female extension cable
• 2 x 4-pin to 7-pin cable splitter

Camera Specifications

• Image Sensors: 1/3" color HD CMOS/CCD
• System: NTSC/PAL (TV system)
• Minimum Illumination: 0Lux (LED ON)
• IR Night Vision: 8 pcs IR LED
• Lens Angle: 170°
• Night Vision Distance: 30ft
• BLC: Auto
• White Balance: Auto
• Video Color: Colorful
• Waterproof Class: IP68
• Effective Pixels: 756(H) x 504(V)
• Pixel Resolution: 600TV lines
• Video Output: 1.0Vp-p, 75Ω
• Electronic Shutter: 1/60 (NTSC) - 1/10000s
• S/N Ratio: Better than 48dB
• Operation Temperature: -20°C ~ +70°C RH95%
• Storage Temperature: -40°C ~ +100°C RH95%
• Working Power (DC): 12V/1.5A
• Power Consumption: 90mA Max
• Video Cable: 2 x 4PIN aviation connectors

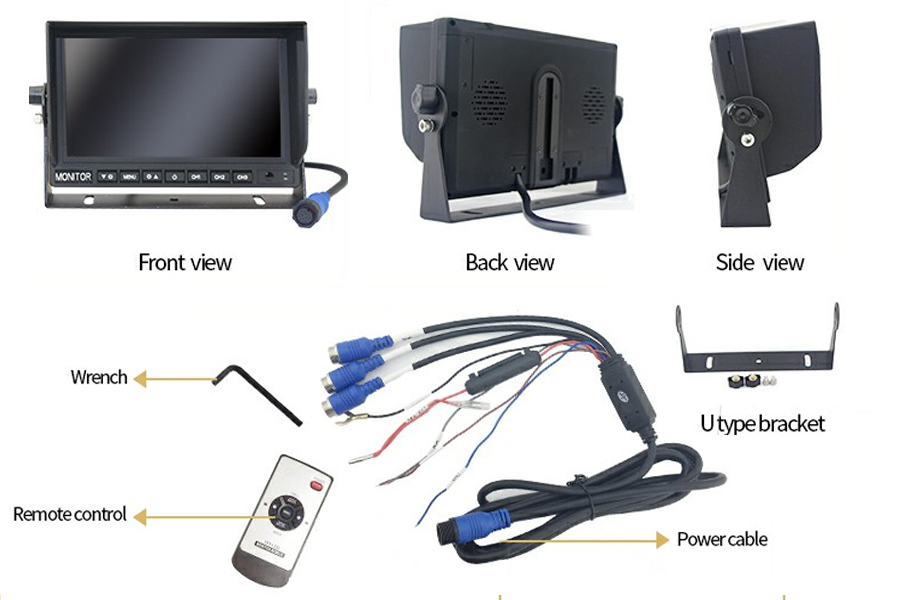

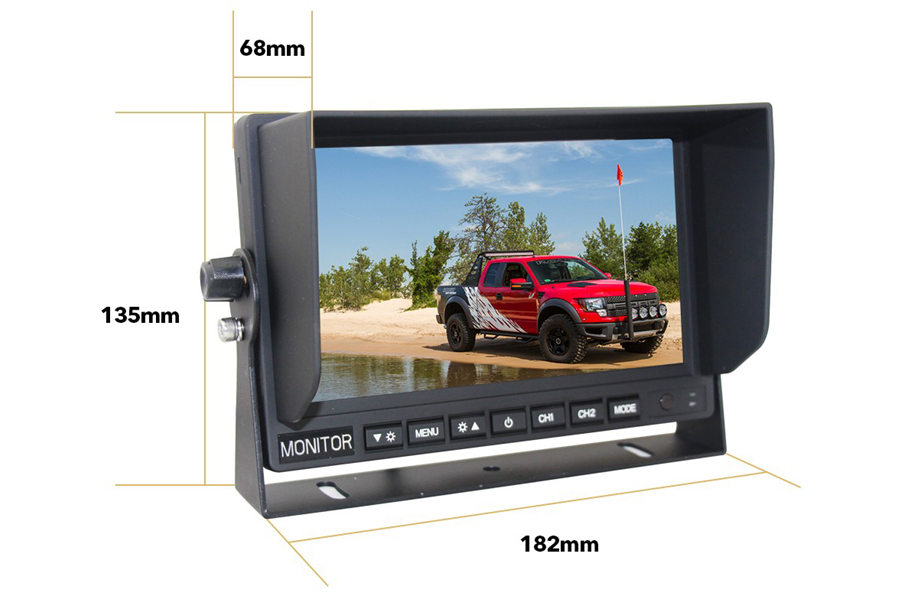

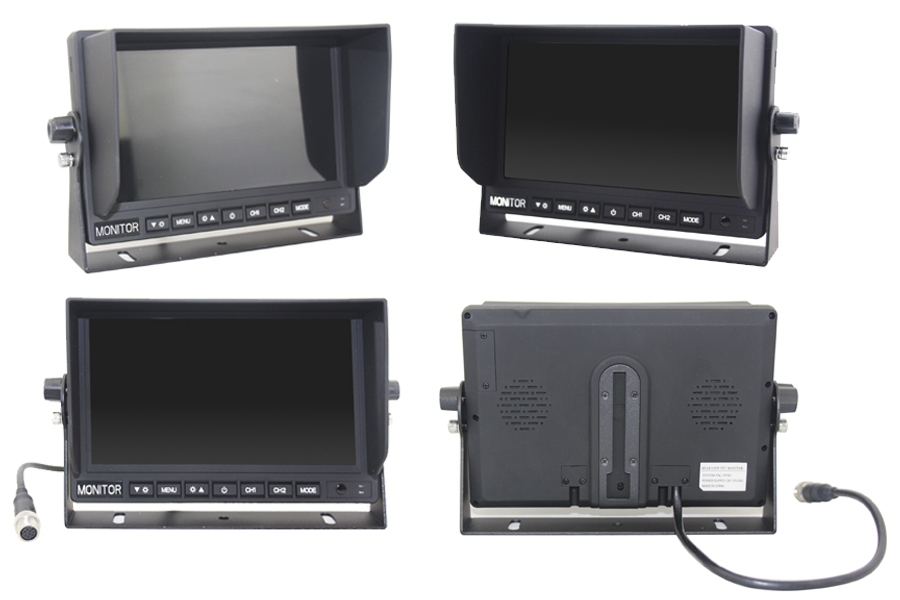

7 inch Rear View Camera Monitor/Screen (CVC-M-709)

These monitors are great to use when installing an aftermarket reverse camera(s) without having to affect the original factory fitted system.

Included: U bracket (option to replace with CVC-M-BR01 or CVC-M-BR05 ball joint swivel brackets)

Monitor Specifications

• Screen Size: 7 inch
• Resolution: 800 x 480
• Screen Luminance: 450CD
• Contrast: 500:1
• View Angle Range: Up: 50° / Down: 60° / Left & Right: 70°
• Video/Audio: 3 Channel input
  • 2 Channels: Aviation plug (video/audio)
  • 1 Channel: RCA input
• Video Format: CVBS / PAL / Auto NTSC
• Working Voltage: DC 10.8–36V
• Bracket: U-shaped
• Wire Plug: 2 x RCA Plug
• OSD Menu Features:
  • Switch parking guide lines
  • Mirror / Non-mirror image view
  • Reverse time delay (0–10 seconds)
  • Language options
  • Video effect adjustments
  • Volume control

Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.

Ford - Transit Custom MK1 (2012 - 2018)
