InCarTec | Mercedes Sprinter, VW Crafter (2006-2016) DUAL LENS high level brake light camera and monitor kit ( CK-MBZ-01-DUAL )

Dual Lens Reverse View High Level Brake Light Camera and Monitor Kit – Mercedes Sprinter & VW Crafter (2006–2016)

Dual lens reverse view high level brake light camera and video monitor kit specially designed for Mercedes Sprinter and VW Crafter (2006–2016) vehicle models.

The camera included in this kit replaces the high level brake light at the rear of the vehicle and provides additional visual safety to the back of the vehicle, whilst maintaining its original appearance.

The dual-camera feature allows the driver to view the rear of the vehicle in real time as well as providing a camera feed to make reversing a more comfortable and stress-free experience.

This kit comes complete with a 7 inch 2-channel video monitor, great to use when installing an aftermarket reverse camera(s) without having to affect the original factory fitted system.

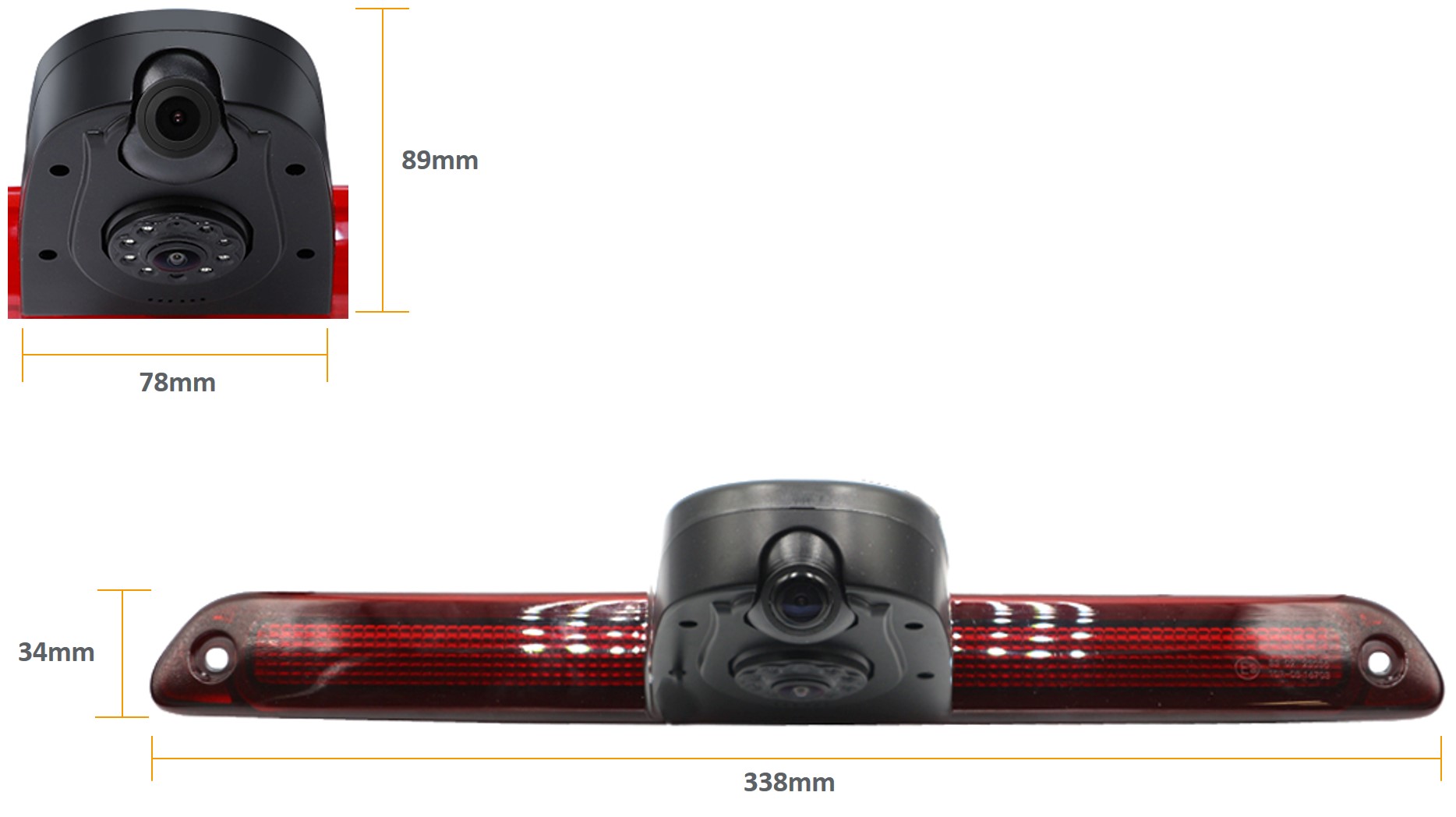

DUAL LENS High Level Brake Light Camera (CVC-MBZ-01-DUAL)

Dual-lens rear view camera specially designed for Mercedes Sprinter (2006 onwards) and VW Crafter (2006–2016) vehicles.

This camera replaces the high level brake light at the rear of the vehicle and provides additional visual safety to the back of the vehicle, whilst still maintaining its original appearance.

The dual-camera feature allows the driver to view the rear of the vehicle in real time as well as providing a camera feed to make reversing a more comfortable and stress-free experience.

This dual-lens camera features a 170-degree lens viewing angle, 1/3" CMOS image sensor, 756 x 504 resolution, and is waterproof rated at IP68 as standard.

This camera kit includes:
• 10m 7-pin extension cable
• 4-pin to 7-pin cable splitter

Specifications

Camera Specifications:
• Image Sensors: 1/3" color HD CMOS/CCD
• System: NTSC/PAL (TV system)
• Minimum Illumination: 0Lux (LED ON)
• IR Night Vision: 8 pcs IR LED
• Lens Angle: 170°
• Night Vision Distance: 30ft
• BLC: Auto
• White Balance: Auto
• Video Color: Colorful
• Waterproof Class: IP68
• Effective Pixels: 756(H) x 504(V)
• Pixel Resolution: 600TV lines
• Video Output: 1.0Vp-p, 75Ω
• Electronic Shutter: 1/60 (NTSC) – 1/10000S
• S/N Ratio: Better than 48dB
• Operating Temperature: -20°C ~ +70°C RH95% Max
• Storage Temperature: -40°C ~ +100°C RH95% Max
• Working Power (DC): 12V / 1.5A
• Current Consumption: 90mA Max
• Video Cable: RCA connector / 4Pin aviation

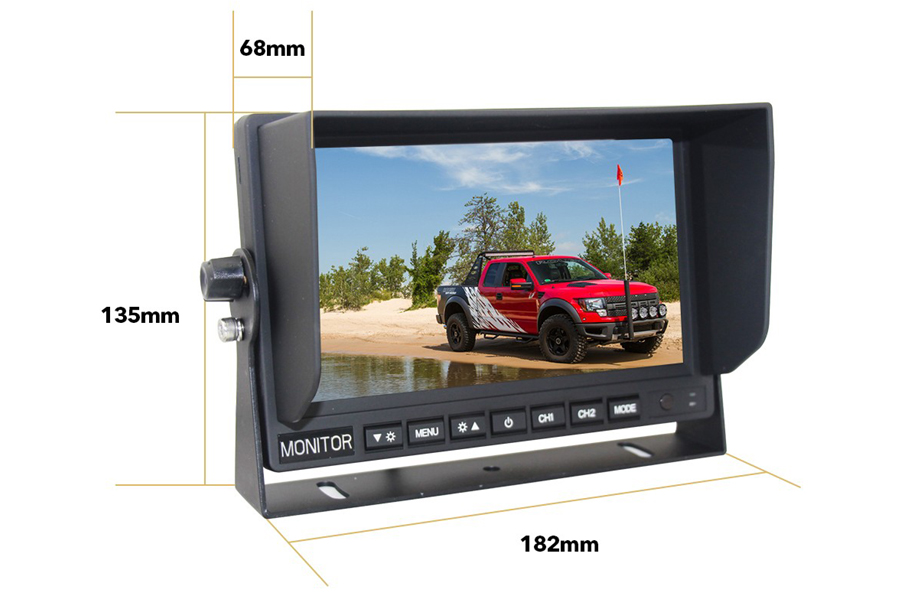

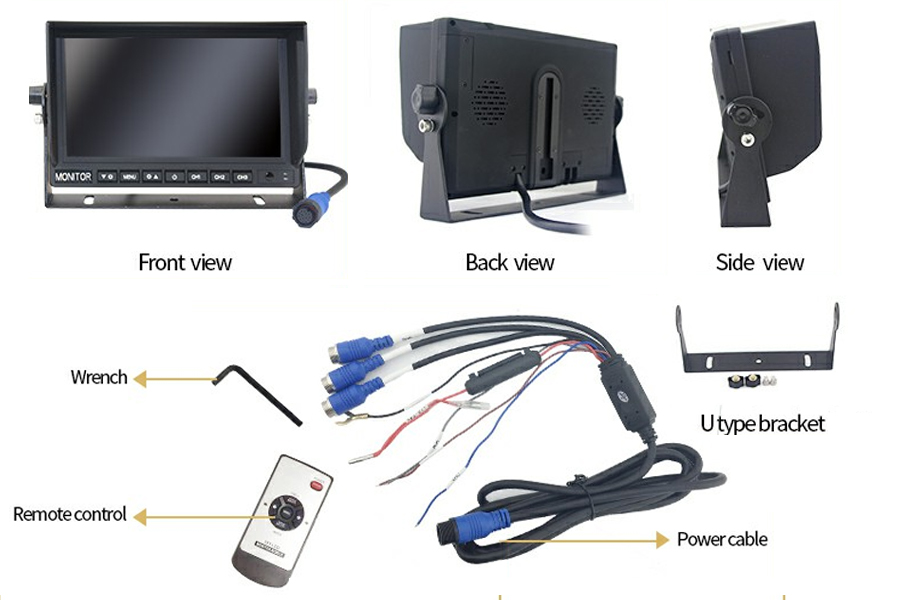

7 Inch Rear View Camera Monitor/Screen (CVC-M-709)

7 inch Rear View Camera Monitor/Screen (4 PIN Connection). These monitors are great to use when installing an aftermarket reverse camera(s) without having to affect the original factory fitted system.

Product Specifications:
• Screen Size: 7 inch
• Resolution: 800 x 480
• Screen Luminance: 450CD
• Contrast Ratio: 500:1
• View Angle Range: U: 50° / D: 60° / L/R: 70°
• Video/Audio: Supports 3 CH video input (2 Channels aviation plug video/audio, 1 Channel RCA Input)
• Video Format: CVBS / PAL / AUTO NTSC
• Working Voltage: DC 10.8–36V
• Bracket: U-shaped bracket (can be replaced with CVC-M-BR01 or CVC-M-BR05 ball joint swivel brackets)
• Wire Plug: 2 x RCA Plug
• OSD Menu Features: Switch parking guide lines, Mirror/Non-mirror image view switch, Reverse time delay (0–10 seconds), Multi-language options, Adjust video effects, Adjust volume

Car models: The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.

Mercedes - Sprinter (W906) NCV3 (2007 - 2018)
Mercedes - Sprinter (W907/910) VS30 (2019 - 2023)
Volkswagen - Crafter 1st Gen (Type 2E/2F) (2006-2016)
