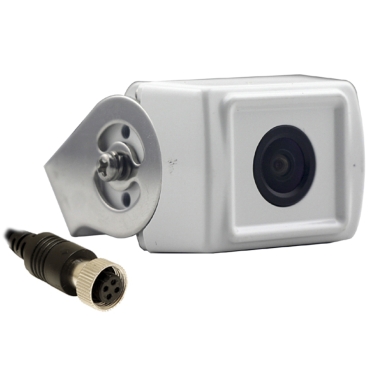

InCarTec | Universal heavy duty rear view camera with adjustable bracket for Vans/ Motorhomes NTSC (WHITE) ( CVC-UNI-206 )
Universal heavy duty rear view camera with adjustable bracket suitable for trucks and vans and mobile homes.
This camera uses NTSC video format, it will work with both the vehicles original head unit and aftermarket monitors.
4PIN connection.
Please read the long description for full camera specifications
PLEASE NOTE: This item is classed as “universal fitment”. This means it has been designed to work universally with a range of vehicle applications but does not necessarily mean it will fit your application. We strongly recommend you check all the size information, product content and then inspect to see if it will be applicable to fit to your vehicle.
(Supplied, inc VAT)
Full Description
Universal heavy duty rear view camera with adjustable bracket suitable for trucks and vans and mobile homes
This camera uses NTSC video format, it will work with both the vehicle's original head unit and aftermarket monitors.
Product Specifications
- Size: 36mm x 28mm x 36mm
- Connection: 4pin
- Sensor: 1/3 CMOS
- Effective Pixels: 728(H) x 488(V)
- Min illumination: 0.1Lux (Day)
- Guideline: ON
- TV line: 700TVL
- TV System: NTSC
- Lens: 1.9mm
- Waterproof: IP68
- View angle: 160°
- Power voltage: 12V
- Operation Temp: -20℃ to +70℃
PLEASE NOTE: These cameras do not come with cable to extend to an aftermarket screen/monitor. You will need to purchase a 5m, 10m or 15m cable set separately.
Make sure you choose the correct cable to suit the Monitor you are connecting the camera to:
- This camera will Plug and Play with any 4PIN series Monitor such as our part number CVC-M-500 or CVC-M-709.
- If you are using an aftermarket Monitor with RCA Phono video connections then you will need to use the adapter CVC-CB-09 which will convert the 4PIN female connector to phono.
