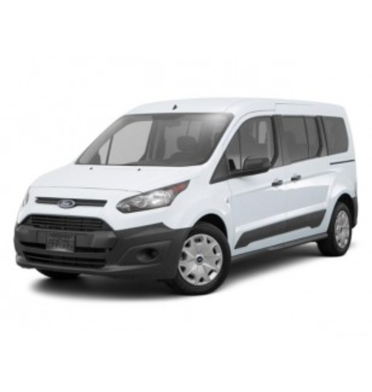

Start / Stop Disable | Ford Transit Connect 2014+ CAN BUS

£399.99

(Supplied & Fitted, inc VAT)

The VTT CANNECT START-STOP DISABLE is a CAN Bus interface designed to automatically disable the “Start-Stop” function on vehicles where this feature is not desired. Each time the vehicle engine is started, this interface automatically disengages the “Start-Stop” control so that manually overriding of the function is not necessary. The “Start-Stop” function can be re-instated by the driver at any time during the journey as desired but will automatically cancel again the next time the vehicle is started.



Applications



The VTT CANNECT START-STOP DISABLE interface is extremely popular with refrigeration and temperature controlled vehicles. Many refrigeration transportation companies suffer from the engine cutting out when the vehicle enters “Start-Stop” mode, which in turn shuts off the power to the temperature controlled storage at the rear of the vehicle. This poses huge problems as these systems require constant power during transportation to keep them at the desired temperature. By installing our START-STOP DISABLE interface, this completely eradicates this issue and has proven to be a huge success amongst existing customers. Most “Start-Stop” systems incorporate a manual override control, but the specification for special vehicles may often require the override to be an automatic feature. Most vehicle suppliers are not able to offer this facility as an option.




Customs Application


If you cannot find a product that meets your exact requirements, then please contact us directly as we specialise in designing custom software and will be happy to discuss your requirements further.




Vehicle Compatibility List


Our Start Stop Disable Interfaces are currently compatible with the following vehicles. You will notice that there are two lists, one for START-STOP DISABLE and one for START-STOP DISABLE (POWER). This product is suitable for those vehicles listed under the START-STOP DISABLE heading.

If your vehicle is listed under the START-STOP DISABLE (POWER) heading, please Click here to go to the Start Stop List page and check this unit as it is a different version of hardware. Although the functionality is the same, this is a completely different product so please note the difference in the installation instructions.

However if you do not see your vehicle listed, please get in touch directly as we may still be able to provide a solution for you.






CANNECT Range


The VTT CANNECT interfaces are the latest development to our range of CAN Bus products, these products feature some unique advantages over general CAN Bus interfaces.

The most important feature of the CANNECT range is that they are updatable. The CANNECT product firmware is under continual revision to keep pace with the latest vehicle applications. The CANNECT update service is available to our trade and account customers and requires the purchase of CANNECT-RUI Interface to access the latest software file downloads. Please enquire if you are interested in our CANNECT-RUI service and we will aim to assist you.

Another important feature is our Remote Support Service. The CANNECT-RUI is a dual function interface that not only provides the software update to the interface but can also be utilised by one of our engineers to remotely analyse new vehicle CAN systems or issues with existing compatibility. All that our customers require to benefit from this service is a laptop or notebook PC and a sufficient internet connection. We aim to rectify compatibility issues and offer compatibility to new vehicles within 1 hour of connection.

All CANNECT interfaces feature a bi-colour status LED that provides a clear indication of the interface operation. Most CANNECT products also feature direct compatibility with our contact-less CAN Bus reader to enable connection to the CAN system without any metal to metal contact.



Installation Instructions in your pocket


Vehicle specific installation instructions are available for a wide range of CANNECT products via the CANM8 CANNECT App, available to download for free on the App Store and Google Play. Simply follow the steps below for access to the latest installation files for your product.




Installation & Specifications


Installation Details


The interface features a mini wiring connector, which unplugs to allow easy installation. There are 2 connections to the vehicle CAN Bus wiring (CAN HI & CAN LO) along with a connection to a permanent, fused 12v power supply and an earth connection.

The VTT START-STOP DISABLE interface will automatically disable the vehicle Start-Stop system. For some vehicles, you only need to connect the CAN Bus wires and the unit is able to de-activate the Start-Stop system via CAN. Other vehicles require the physical connection of an input and an output wire to turn the Start-Stop system off but these are clearly labelled on the installation instructions that will be sent with your product.

The interface incorporates a multi-function status LED, which indicates the status of the vehicle Start-Stop system.



LED Status Details




LED Status Details


Ask a Question
A stop-start or start-stop system is an automatic system that can restart and turn off a vehicle’s engine to reduce engine idling time. As a result, a significant reduction in emissions and fuel consumption occurs in busy areas.
No, it is not allowed to cut short the cruise control cable. In case the cruise control cable is longer than required, it can be looped but make sure the loop has a diameter that is larger than 6”. REMOVE PLEASE
You might need to maintain a specific speed for some time in some areas during travel and cruise control system can do it for you. It is designed to automatically maintain the speed of your vehicle. The driver can leave the accelerator and steering when cruise control is active. When activated, cruise control takes over the throttle of the vehicle. The driver will have to disable cruise control to take back the vehicle’s control.

The Start-stop or stop-start device is based on a technology that can start and stops the vehicle's engine under certain conditions. Stop-start system can help improve fuel efficiency and reduce greenhouse gas emissions by turning off the engine when not needed. We have two types of start-stop devices: one is known as enable start-stop and disable start-stop.

Please check the specific product page to see the terms and conditions associated with a product.

We start processing your order immediately after your confirmation. We may need 3 or more for execute installation.

Please feel free to contact us if you want to raise a support request.

In case of malfunction, please contact us to make a service call.

The cost of installing a product into your vehicle varies greatly. Our products only include supply and fit facility.

Yes, we have technicians that can install a device into your vehicle.
Different specialist upgrade products have a different life expectancy.

Yes, most of our specialist upgrade products come with a warranty. Please check the product pages to know more. The warranty ranges from 1 to 3 years.
